| Specifications |
|
| |
|
| General parameters |
| Communication interface |
RS485, Ethernet |
| Access control interface |
Exit switch input, relay output, door magnetic signal input |
| Instruction method |
Screen icon indication, buzzer, voice (optional) |
| Image Sensor |
48 Megapixel CMOS Image Sensor |
| Maximum resolution |
800*600 |
| operating system |
Linux |
| Installation |
86 box installation, non-86Box Installation |
| Reading window material |
tempered glass |
| Screen size |
3.33inch |
| Screen resolution |
320*480 IPSHD |
| touchscreen |
Capacitive touch |
| Speaker decibel |
≤71decibel, 1 meter from the speaker |
| Bluetooth |
BLE5.1(The maximum communication distance in an open environment is 25rice) |
| QR code reading parameters |
| Identification code system |
QR Code: QR Code, PDF417One-dimensional barcode: CODE128、EAN13、EAN8, code39, code93, ISBN10, ISBN13, ITF, UPCA, UPCE, AZTEC |
| Decoding support |
Screen Code |
| Reading distance |
15mil QR code: 22.5mm~129.06mm (under normal indoor light, mobile phone brightness 100%) |
| Reading accuracy |
QR: ≥7mil, in version 7; ≥8mil, in12Version; |
| Read speed |
100ms each time (average), supports continuous reading |
| Reading direction |
360 degrees |
| Reading Angle |
Center tilt angle: 46.2°; Center deflection angle:43.2° |
| Field of view |
Horizontal angle: 65.3°; Vertical angle: 55.8°; Field of view 79.5° |
| RFID card reading parameters |
| Identification card type |
ISO 14443A protocol card, ISO 14443B protocol card, ID card physical card number, ID card information (optional) |
| Operation card mode |
Physical UID, M1Card sector read and write, CPU card file read and write |
| RF frequency |
13.56mhz |
| Reading distance |
M1Cards ≤ 38mm; Epoxy card ≤21mm; ID card ≤19mm |
| PSAM Card |
| Protocol support |
Complies with ISO7816-1/2/3 protocol, supports T=0 |
| algorithm |
Commercial Confidential |
| Working environment parameters |
| Electrostatic protection |
±15kV (air discharge), ±4kV (contact discharge) |
| Operating temperature |
-20℃~60℃ |
| Storage temperature |
-40℃~80℃ |
| Relative humidity |
5%-95% (no condensation) (at room temperature) |
| Ambient illumination |
0-80000Lux (not in direct sunlight) |

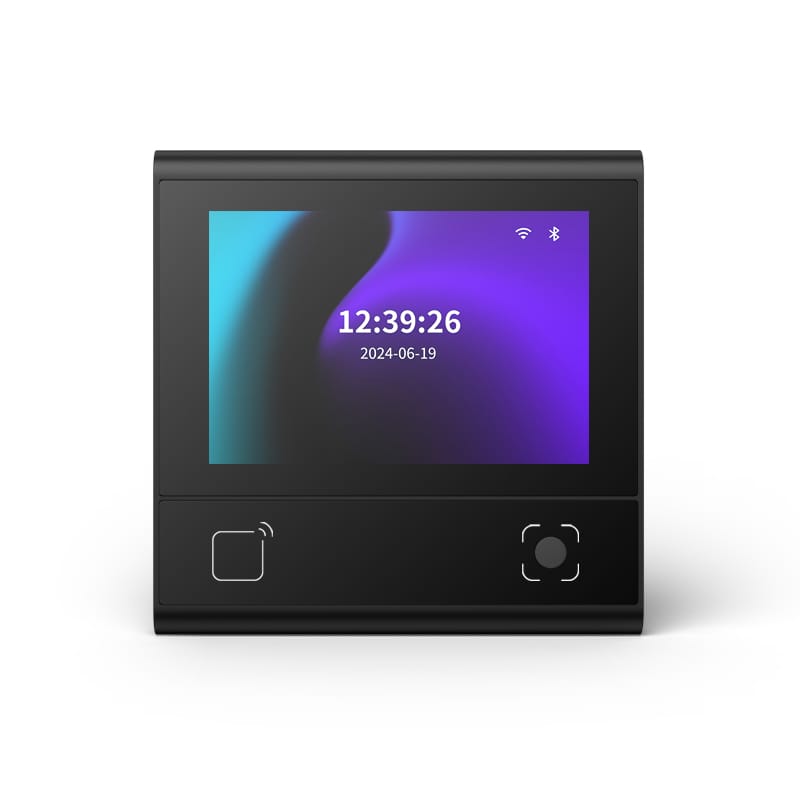

.jpg "RFID und QR Leser für Zutrittskontrolle und Zeiterfassung (für Softwareentwicklung)")
